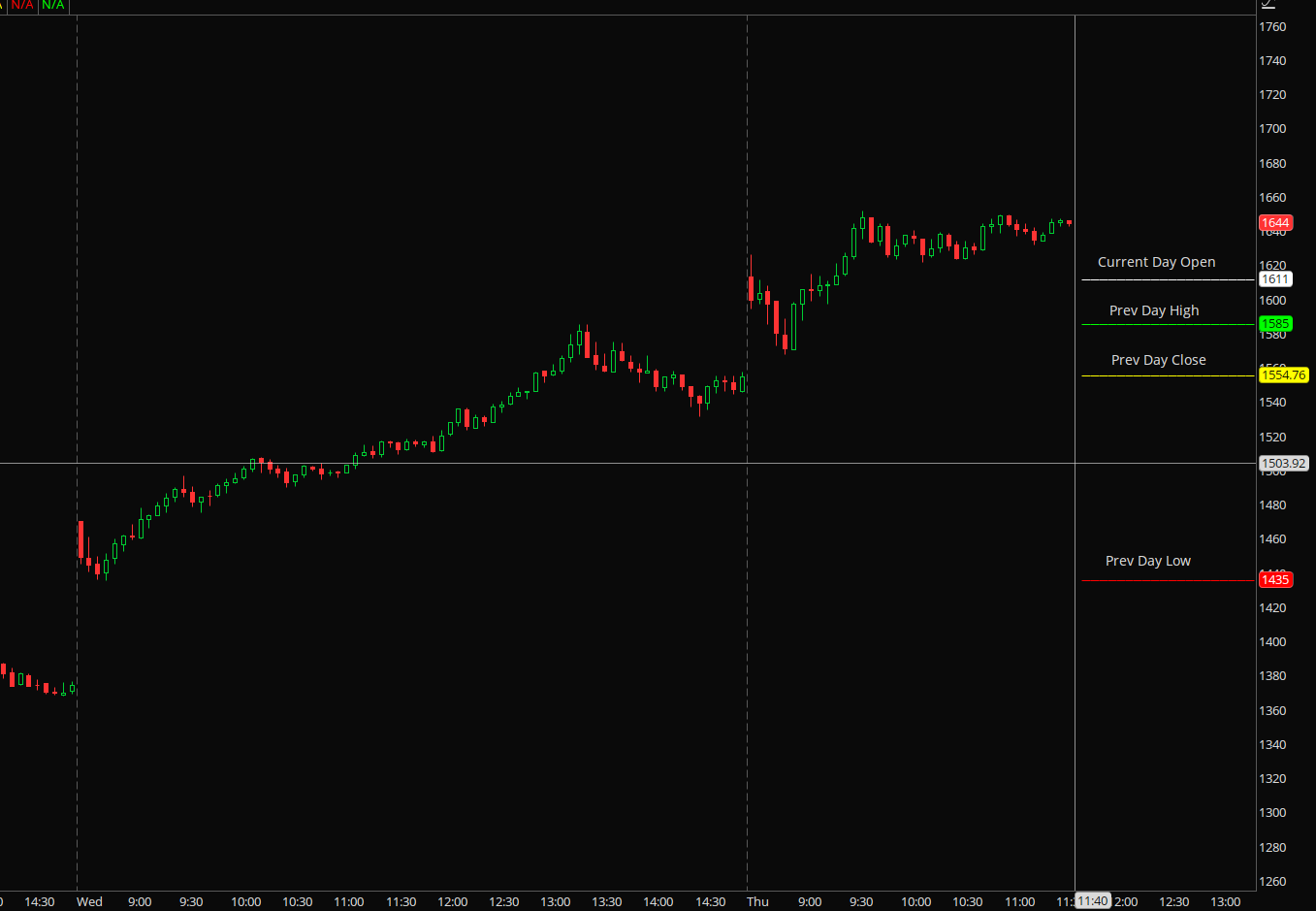

Previous Day High/Low/Close For ThinkOrSwim

SleepyZ said:
Although the ExtHrs Low worked on the other days using the volumeprofile method, it did not for Sun/Monday. So the following workaround seems to fix that. I used the volumeprofile so that you could see the developing horizontal line throughout the premarket. Most other methods seem to plot the horizontal line after the close of the ccurrent premarket period.

As far as extending the lines from the previous day into the next day cannot be done with the above code. It is one continuous line changing at the start of rthr session. To do your request would be writting another code.
Click to expand...
Can't thank you enough @SleepyZ

This is brilliant. It's visually stunning and very practical. Tracking overnight levels is key for my trading.

Will open up a new thread, but want to be able to plot just the OVN POC next. Running VP from 18:00 to 9:29 and just plot that POC into the rth session. Not sure if that's doable but will search before posting.

Thanks!!!

hboogie said:
Can't thank you enough @SleepyZ

This is brilliant. It's visually stunning and very practical. Tracking overnight levels is key for my trading.

Will open up a new thread, but want to be able to plot just the OVN POC next. Running VP from 18:00 to 9:29 and just plot that POC into the rth session. Not sure if that's doable but will search before posting.

Thanks!!!
Click to expand...

Since I already was using the volumeprofile indicator for the HL, I added exthrs POC to the last version

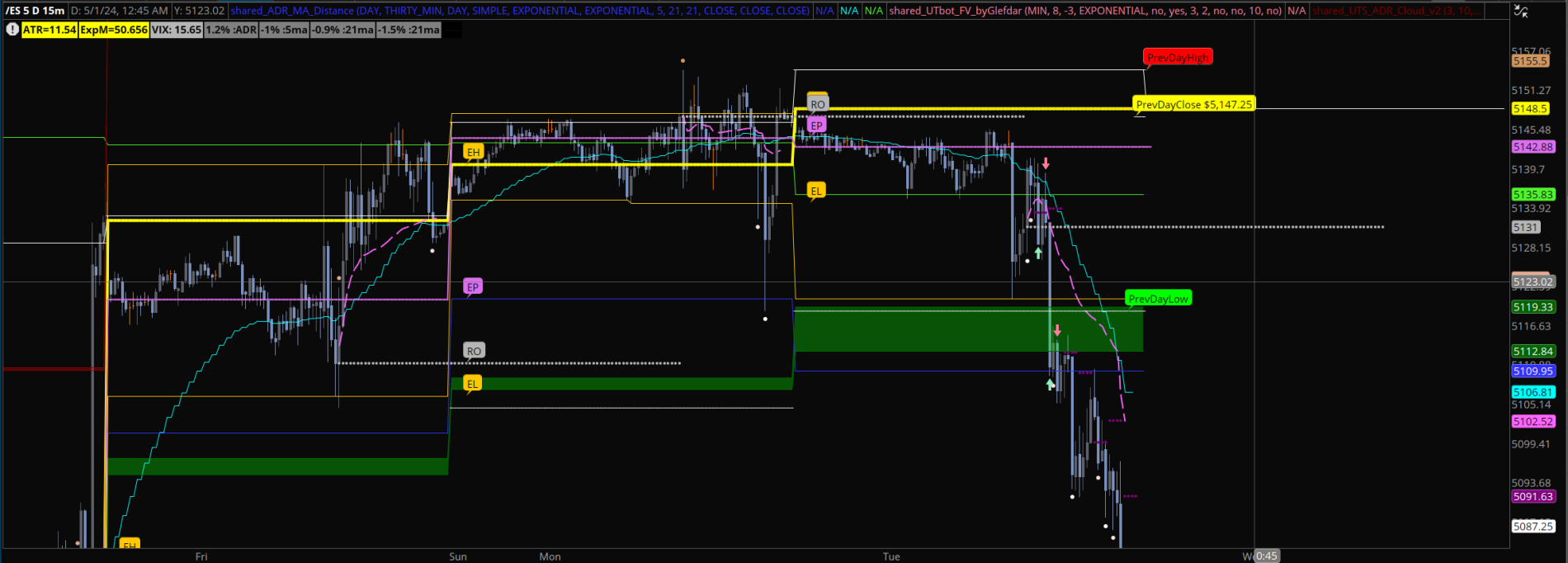

The image shows the exthrs POC extended into rthrs as well as the TOS volumeprofile indicator, highlighting the POC from it for the whole day.

Screenshot 2024-04-30 130715.png
Code:
#Premarket_HL_Futures_ExtendedHrs_HL_POC_using_ProfileHL

input showrthopen_plot = yes;
input start = 1800;
input end = 0929;
input rthstart = 0930;
input rthend = 1615;
input bubblemover = 0;
input showPriorbubbles = yes;
input showLastbubbles = yes;
input extendlines = yes;

def sec1 = SecondsFromTime(start);
def sec2 = SecondsFromTime(end);
def isTime1 = (sec1 >= 0 and sec1[1] <= 0) or
(sec1 < sec1[1] and sec1 > 0);
def isTime2 = (sec2 > 0 and sec2[1] <= 0) or
(sec2 < sec2[1] and sec2 > 0) ;

def aftermarket = CompoundValue(1,
if isTime1[1] == 0 and isTime1 == 1
then 1
else if isTime2
then 0
else aftermarket[1], 0);

def bars = 100000;
def bn = BarNumber();
def na = Double.NaN;

def period = bn - 1;
def count  = CompoundValue(1,
if aftermarket and period != period[1]
then (count[1] + period - period[1]) % bars
else count[1], 0);
def cond = count < count[1] + period - period[1];

profile vol = VolumeProfile("startNewProfile" = cond, "onExpansion" = no, "numberOfProfiles" = bars, "pricePerRow" = PricePerRow.TICKSIZE , "value area percent" = 0);

#ExtHigh
def hProfile = if aftermarket and IsNaN(vol.GetHighest())
then hProfile[1]
else if period != period[1]
then vol.GetHighest()
else hProfile[1];

def ProfileHigh = if extendlines and !aftermarket then ProfileHigh[1] else if aftermarket then hProfile else na;

#ExtLow
def extlowtoday = if IsNaN(close) then extlowtoday[1] else if cond[1] == 1 and cond == 0
                  then low
                  else if cond == 0 and GetTime() < RegularTradingStart(GetYYYYMMDD())
                  then  Min(low, extlowtoday[1])
                  else extlowtoday[1];

#Monday workaround
def ymd         = getyyyymmDD();
def ct1         = if !IsNaN(close) and ymd != ymd[1] then ct1[1] + 11 else ct1[1];
def cond1       = HighestAll(ct1) - ct1;

def mondaylow   = if getdayofweek(getyyyyMMDD())==1 and sec1==0
                  then low
                  else if cond == 0 and GetTime() < RegularTradingStart(GetYYYYMMDD())
                  then  Min(low, extlowtoday[1])
                  else mondaylow[1];

def lProfile = if cond[1] == 1 and cond
then low
else if period != period[1]
then vol.GetLowest()
else lProfile[1];

def ProfileLow = if getdayofweek(getyyyyMMDD())==1  then mondaylow else if getdayofweek(getyyyyMMDD())>1 and extendlines and !aftermarket then ProfileLow[1] else if aftermarket then lProfile else na;

#Colors
DefineGlobalColor("H", Color.ORANGE);
DefineGlobalColor("L", Color.ORANGE);
DefineGlobalColor("O", Color.WHITE);
DefineGlobalColor("P", Color.magenta);

plot hrange = ProfileHigh;
plot lrange = ProfileLow;
def ropen = if showrthopen_plot and SecondsFromTime(rthstart) == 0 then open else ropen[1];
plot orange = ropen;
hrange.AssignValueColor(GlobalColor("H"));
lrange.AssignValueColor(GlobalColor("L"));
orange.AssignValueColor(GlobalColor("O"));

#Premarket POC
def pPOC     = if aftermarket and IsNaN(vol.GetHighest())
               then pPOC[1]
               else if period != period[1]
               then vol.GetpointOfControl()
               else pPOC[1];
def exPOC   = if extendlines and !aftermarket then exPOC[1] else if aftermarket then pPOC else na;
plot POC    = exPOC;
POC.assignvalueColor(globalColor("P"));

#Bubbles - Prior Days
AddChartBubble(showPriorbubbles and hrange[bubblemover] != (hrange[bubblemover + 1]), hrange[bubblemover + 1], "EH", hrange.TakeValueColor());
AddChartBubble(showPriorbubbles and hrange[bubblemover] != (hrange[bubblemover + 1]), lrange[bubblemover + 1], "EL", lrange.TakeValueColor());
AddChartBubble(showPriorbubbles and hrange[bubblemover] != (hrange[bubblemover + 1]), orange[bubblemover + 1], "RO", orange.TakeValueColor());
AddChartBubble(showPriorbubbles and hrange[bubblemover] != (hrange[bubblemover + 1]), POC[bubblemover + 1], "EP", POC.TakeValueColor());

#Bubbles - Last Plot
AddChartBubble(showLastbubbles and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), hrange[bubblemover + 1], "ETH", hrange.TakeValueColor());
AddChartBubble(showLastbubbles and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), lrange[bubblemover + 1], "ETL", lrange.TakeValueColor());
AddChartBubble(showLastbubbles and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), orange[bubblemover + 1], "RTO", orange.TakeValueColor());
AddChartBubble(showLastbubbles and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), POC[bubblemover + 1], "ETP", POC.TakeValueColor());


#
Click to expand...

SleepyZ said:
Since I already was using the volumeprofile indicator for the HL, I added exthrs POC to the last version

The image shows the exthrs POC extended into rthrs as well as the TOS volumeprofile indicator, highlighting the POC from it for the whole day.
Click to expand...
This looks amazing!!

To be clear, does this update include the fix you implemented here https://usethinkscript.com/threads/previous-day-high-low-close-for-thinkorswim.3494/post-141016 ?

I just tried adding it but am not seeing the profile. Wil keep tinkering with it, but this would be amazing....

hboogie said:
This looks amazing!!

To be clear, does this update include the fix you implemented here https://usethinkscript.com/threads/previous-day-high-low-close-for-thinkorswim.3494/post-141016 ?

I just tried adding it but am not seeing the profile. Wil keep tinkering with it, but this would be amazing....
Click to expand...
Looks incredible @SleepyZ

I'm ok with the profile not being visible, but someone else might want to see it. And i'm guessing you'd want to know why it's not displaying. But thanks for bringing this to life!

H


hboogie said:
Looks incredible @SleepyZ

I'm ok with the profile not being visible, but someone else might want to see it. And i'm guessing you'd want to know why it's not displaying. But thanks for bringing this to life!

H

View attachment 21736
Click to expand...
The profile in the image was the TOS VolumeProfile indicator to confirm that what the code produced for the POC was not the TOS indicator POC. If someone wants the TOS indicator, they could just added it.

SleepyZ said:
The profile in the image was the TOS VolumeProfile indicator to confirm that what the code produced for the POC was not the TOS indicator POC. If someone wants the TOS indicator, they could just added it.
Click to expand...
I get it now. I re-read the message. even better. Thanks a million!!!!

csricksdds said:
I think they will show on all Stocks/Futures/ETFs - just remember the lower the time frame the more the ebb and flow (more trades/less duration overall which is why I trade a 5 min chart - I used to trade ticks/1 min)..)
Click to expand...
So you only use 5min and your trigger is of 5min ?

SleepyZ said:
Although the ExtHrs Low worked on the other days using the volumeprofile method, it did not for Sun/Monday. So the following workaround seems to fix that. I used the volumeprofile so that you could see the developing horizontal line throughout the premarket. Most other methods seem to plot the horizontal line after the close of the ccurrent premarket period.

As far as extending the lines from the previous day into the next day cannot be done with the above code. It is one continuous line changing at the start of rthr session. To do your request would be writting another code.
Click to expand...

I had some time to test the code for extended hours and the volumeprofile method I used does not seem to be reliable for exthrs low. The exthrs high seems fine.

So I have rewritten the exthrs low to be more of a developiing plot of the low, which is then extended dueing regular trading hours from the exthrs low at 0929.

I have replaced the last code in post "190" with this code.

Code:
#Premarket_HL_Futures_ExtendedHrs_using_ProfileHL_ETH_v1

input showrthopen_plot = yes;
input start = 1800;
input end = 0929;
input rthstart = 0930;
input rthend = 1615;
input bubblemover = 0;
input showPriorbubbles = yes;
input showLastbubbles = yes;
input extendlines = yes;

def sec1 = SecondsFromTime(start);
def sec2 = SecondsFromTime(end);
def isTime1 = (sec1 >= 0 and sec1[1] <= 0) or
(sec1 < sec1[1] and sec1 > 0);
def isTime2 = (sec2 > 0 and sec2[1] <= 0) or
(sec2 < sec2[1] and sec2 > 0) ;

def aftermarket = CompoundValue(1,
if isTime1[1] == 0 and isTime1 == 1
then 1
else if isTime2
then 0
else aftermarket[1], 0);

def bars = 100000;
def bn = BarNumber();
def na = Double.NaN;

def period = bn - 1;
def count  = CompoundValue(1,
if aftermarket and period != period[1]
then (count[1] + period - period[1]) % bars
else count[1], 0);
def cond = count < count[1] + period - period[1];

profile vol = VolumeProfile("startNewProfile" = cond, "onExpansion" = no, "numberOfProfiles" = bars, "pricePerRow" = PricePerRow.TICKSIZE , "value area percent" = 0);

#ExtGigh
def hProfile = if aftermarket and IsNaN(vol.GetHighest())
then hProfile[1]
else if period != period[1]
then vol.GetHighest()
else hProfile[1];

def ProfileHigh = if bn == 1
then double.nan
else if extendlines and !aftermarket
then ProfileHigh[1]
else if aftermarket
then hProfile
else na;

#ExtLow
def ymd = getyyyYMMDD();
def lProfile = if isnan(close) then lprofile[1]
else if ymd!=ymd[1] then low
else if aftermarket
then min(low, lprofile[1])
else lProfile[1];

def ProfileLow = if bn == 1
then double.nan
else if extendlines and !aftermarket
then ProfileLow[1]
else if aftermarket
then lProfile else na;

#Colors
DefineGlobalColor("H", Color.ORANGE);
DefineGlobalColor("L", Color.ORANGE);
DefineGlobalColor("O", Color.WHITE);

plot hrange = ProfileHigh;
plot lrange = ProfileLow;
def ropen = if bn == 1 then double.nan
else if showrthopen_plot and SecondsFromTime(rthstart) == 0
then open
else ropen[1];

plot orange = ropen;
hrange.AssignValueColor(GlobalColor("H"));
lrange.AssignValueColor(GlobalColor("L"));
orange.AssignValueColor(GlobalColor("O"));

#Bubbles - Prior Days
AddChartBubble(showPriorbubbles and hrange[bubblemover] != (hrange[bubblemover + 1]), hrange[bubblemover + 1], "EH", hrange.TakeValueColor());
AddChartBubble(showPriorbubbles and hrange[bubblemover] != (hrange[bubblemover + 1]), lrange[bubblemover + 1], "EL", lrange.TakeValueColor());
AddChartBubble(showPriorbubbles and showrthopen_plot and hrange[bubblemover] != (hrange[bubblemover + 1]), orange[bubblemover + 1], "RO", orange.TakeValueColor());

#Bubbles - Last Plot
AddChartBubble(showLastbubbles and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), hrange[bubblemover + 1], "ETH", hrange.TakeValueColor());
AddChartBubble(showLastbubbles and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), lrange[bubblemover + 1], "ETL", lrange.TakeValueColor());
AddChartBubble(showLastbubbles and showrthopen_plot and IsNaN(close[bubblemover]) and !IsNaN(close[bubblemover + 1]), orange[bubblemover + 1], "RTO", orange.TakeValueColor());

#
Click to expand...

Last edited:
SleepyZ said:
I had some time to test the code for extended hours and the volumeprofile method I used does not seem to be reliable for exthrs low. The exthrs high seems fine.

So I have rewritten the exthrs low to be more of a developiing plot of the low, which is then extended dueing regular trading hours from the exthrs low at 0929.

I have replaced the last code in post "190" with this code.
Click to expand...
This is awesome @SleepyZ I will test and confirm!!

Looks great, but sure wish the "RO" bubbles wouldn't be visible when I select to not show the rthopen.

see screenshot. I think you had previously mentioned there is a glitch with bubbles. unfortunate.


On a related note - here is a classic example of why I like using that OVN time range and having it displayed throughout the RTH session. Tested the OVN hi twice. Excellent study man!

Last edited:
hboogie said:
This is awesome @SleepyZ I will test and confirm!!

Looks great, but sure wish the "RO" bubbles wouldn't be visible when I select to not show the rthopen.

see screenshot. I think you had previously mentioned there is a glitch with bubbles. unfortunate.

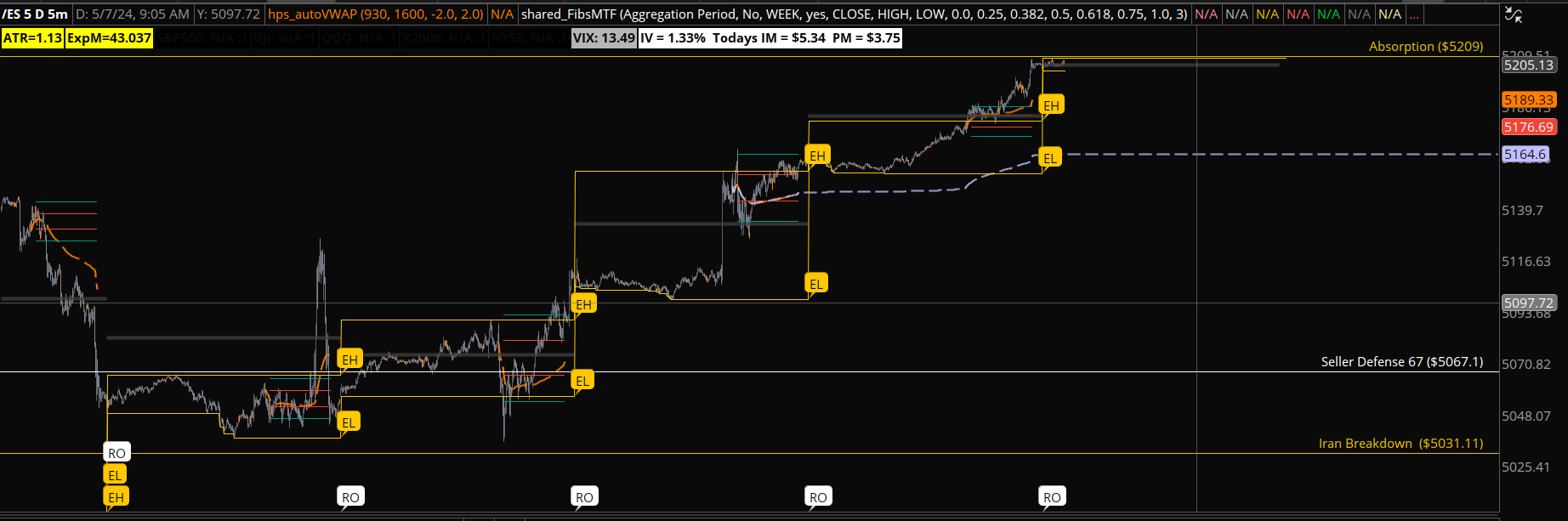

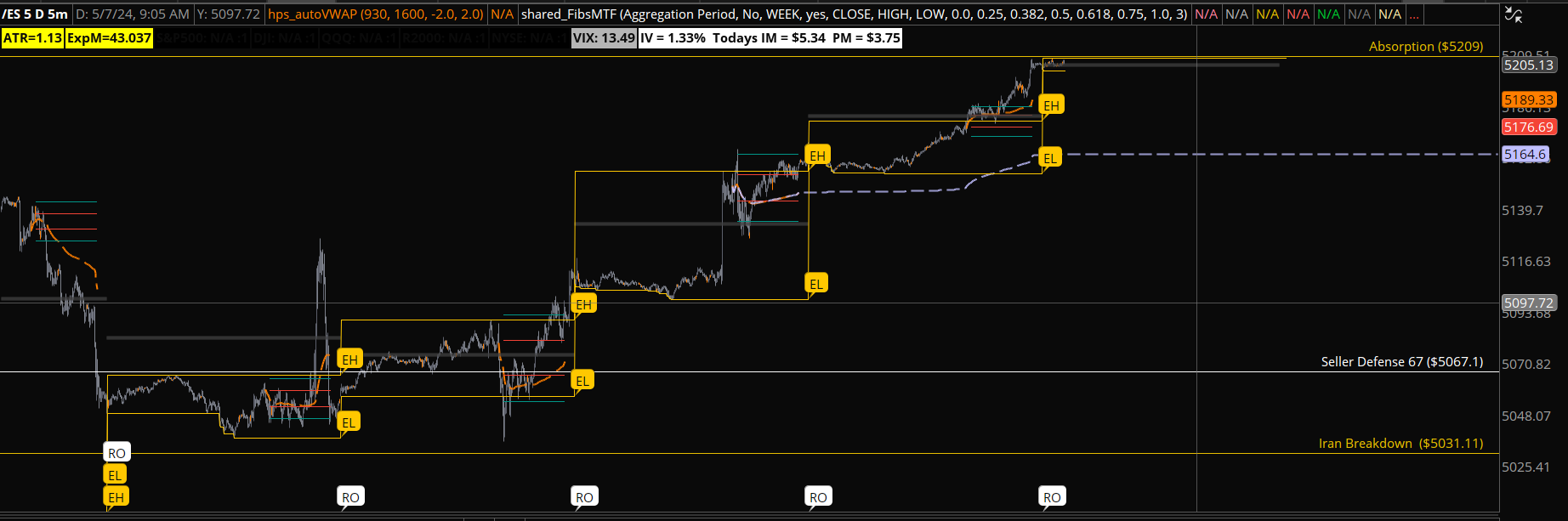

View attachment 21807

On a related note - here is a classic example of why I like using that OVN time range and having it displayed throughout the RTH session. Tested the OVN hi twice. Excellent study man!

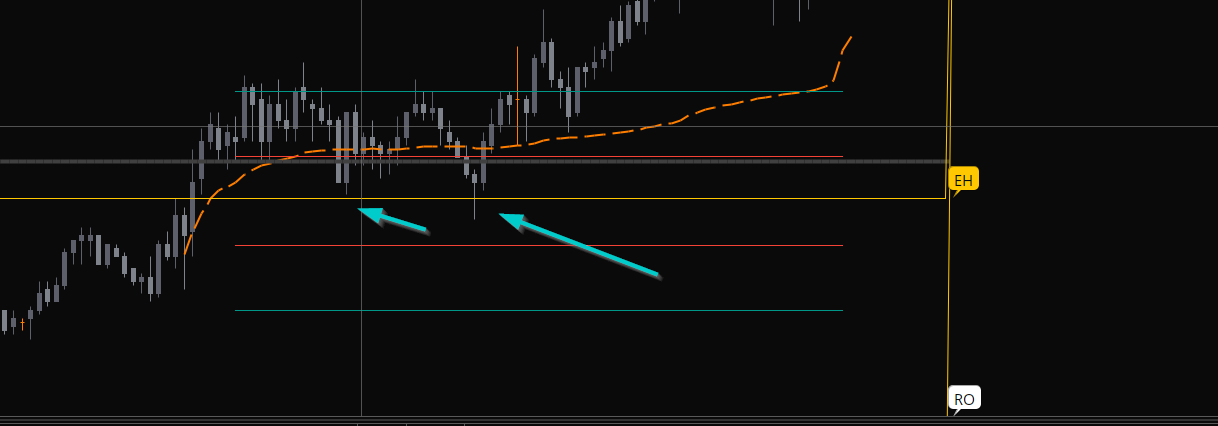

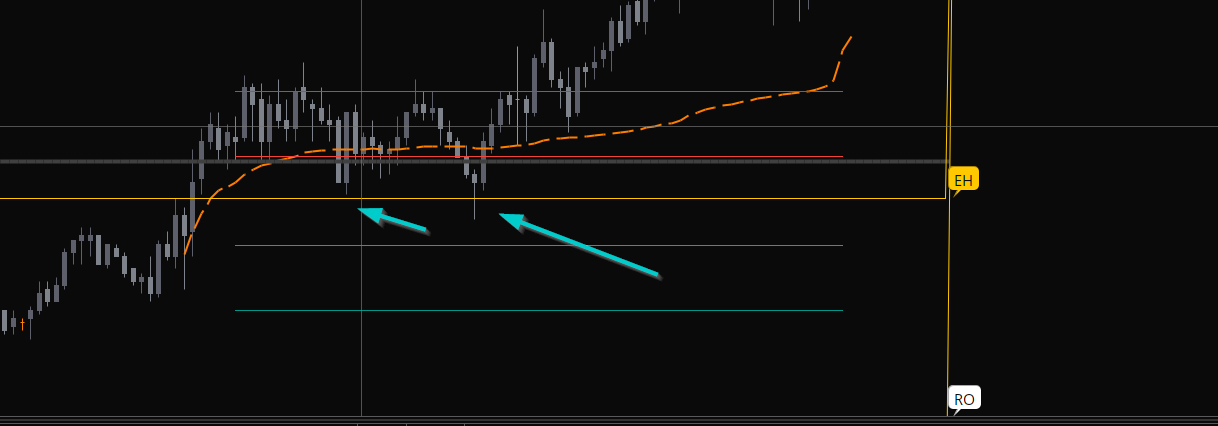

View attachment 21808
Click to expand...

Thanks for the kind words. Glad it helps you.

This should now work how you requested. Replaced new code in posts #190 and #209

@hboogie
Click to expand...
This may interest you.
It plots currently 6 days of Premarket HL and RTO horizontal lines.
These lines can all be extended @input screen to the right edge of the chart
The RTHrs lines and bubbles caan be hidden @input scrren
Below is 2 charts, one not extended and the other extended

Screenshot 2024-05-06 223940.png
Screenshot 2024-05-06 224111.png

Code:
#Premarket_HL_Futures_ExtendedHrs_using_thisday_RThrsOpen

input showrthopen_plot = yes;
input extend           = no;
input showpriorbubbles = yes;
input bubblemover      = 0;
def na = Double.NaN;

script pre {
    input daysback = 0;
    def na = Double.NaN;
    def bn = BarNumber();
    def ymd      = GetYYYYMMDD();
    def capture  = !IsNaN(close) and ymd != ymd[1];
    def dayCount = CompoundValue(1, if capture then dayCount[1] + 1 else dayCount[1], 0);
    plot thisDay = HighestAll(dayCount) - dayCount  ;

    def phigh    = if bn == 1 then na
                   else if thisDay[1] == daysback + 1 and thisDay == daysback
                   then high
                   else if thisDay == daysback and GetTime() < RegularTradingStart(GetYYYYMMDD())
                   then  Max(high, phigh[1])
                   else na;
    def plow     = if thisDay != thisDay[1] and thisDay == daysback
                   then low
                   else if thisDay == daysback and GetTime() < RegularTradingStart(GetYYYYMMDD())
                   then  Min(low, plow[1])
                   else na;
    def ropen    = if bn == 1 then na
                   else if thisDay == daysback
                           and SecondsFromTime(0930) == 0
                   then open
                   else if thisDay == daysback and GetTime() < RegularTradingEnd(GetYYYYMMDD())
                   then  ropen[1]
                   else na;

    plot po      = if thisDay > daysback  then na else HighestAll(ropen);
    plot ph      = if thisDay > daysback  then na else HighestAll(phigh);
    plot pl      = if thisDay > daysback  then na else LowestAll(plow);#

}

plot preh0 = if !extend and pre(0) < 0 then na else pre(0).ph;
plot preh1 = if !extend and pre(1) < 1 then na else pre(1).ph;
plot preh2 = if !extend and pre(2) < 2 then na else pre(2).ph;
plot preh3 = if !extend and pre(3) < 3 then na else pre(3).ph;
plot preh4 = if !extend and pre(4) < 4 then na else pre(4).ph;
plot preh5 = if !extend and pre(5) < 5 then na else pre(5).ph;

plot prel0 = if !extend and pre(0) < 0 then na else pre(0).pl;
plot prel1 = if !extend and pre(1) < 1 then na else pre(1).pl;
plot prel2 = if !extend and pre(2) < 2 then na else pre(2).pl;
plot prel3 = if !extend and pre(3) < 3 then na else pre(3).pl;
plot prel4 = if !extend and pre(4) < 4 then na else pre(4).pl;
plot prel5 = if !extend and pre(5) < 5 then na else pre(5).pl;

plot preo0 = if showrthopen_plot then if !extend and pre(0) < 0 then na else pre(0).po else na;
plot preo1 = if showrthopen_plot then if !extend and pre(1) < 1 then na else pre(1).po else na;
plot preo2 = if showrthopen_plot then if !extend and pre(2) < 2 then na else pre(2).po else na;
plot preo3 = if showrthopen_plot then if !extend and pre(3) < 3 then na else pre(3).po else na;
plot preo4 = if showrthopen_plot then if !extend and pre(4) < 4 then na else pre(4).po else na;
plot preo5 = if showrthopen_plot then if !extend and pre(5) < 5 then na else pre(5).po else na;


#Colors
DefineGlobalColor("H", Color.ORANGE);
DefineGlobalColor("L", Color.ORANGE);
DefineGlobalColor("O", Color.WHITE);

preh0.AssignValueColor(GlobalColor("H"));
preh1.AssignValueColor(GlobalColor("H"));
preh2.AssignValueColor(GlobalColor("H"));
preh3.AssignValueColor(GlobalColor("H"));
preh4.AssignValueColor(GlobalColor("H"));
preh5.AssignValueColor(GlobalColor("H"));

prel0.AssignValueColor(GlobalColor("L"));
prel1.AssignValueColor(GlobalColor("L"));
prel2.AssignValueColor(GlobalColor("L"));
prel3.AssignValueColor(GlobalColor("L"));
prel4.AssignValueColor(GlobalColor("L"));
prel5.AssignValueColor(GlobalColor("L"));

preo0.AssignValueColor(GlobalColor("O"));
preo1.AssignValueColor(GlobalColor("O"));
preo2.AssignValueColor(GlobalColor("O"));
preo3.AssignValueColor(GlobalColor("O"));
preo4.AssignValueColor(GlobalColor("O"));
preo5.AssignValueColor(GlobalColor("O"));



def b = bubblemover;
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh1[b]) and !IsNaN(preh1[b + 1]), preh1[b + 1], "H1", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh2[b]) and !IsNaN(preh2[b + 1]), preh2[b + 1], "H2", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh3[b]) and !IsNaN(preh3[b + 1]), preh3[b + 1], "H3", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh4[b]) and !IsNaN(preh4[b + 1]), preh4[b + 1], "H4", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh5[b]) and !IsNaN(preh5[b + 1]), preh5[b + 1], "H5", GlobalColor("H"));


AddChartBubble(showpriorbubbles and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh0[b + 1], "TH", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh1[b + 1], "H1", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh2[b + 1], "H2", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh3[b + 1], "H3", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh4[b + 1], "H4", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh5[b + 1], "H5", GlobalColor("H") );


AddChartBubble(showpriorbubbles and !extend and IsNaN(prel1[b]) and !IsNaN(prel1[b + 1]), prel1[b + 1], "L1", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel2[b]) and !IsNaN(prel2[b + 1]), prel2[b + 1], "L2", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel3[b]) and !IsNaN(prel3[b + 1]), prel3[b + 1], "L3", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel4[b]) and !IsNaN(prel4[b + 1]), prel4[b + 1], "L4", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel5[b]) and !IsNaN(prel5[b + 1]), prel5[b + 1], "L5", GlobalColor("L"));


AddChartBubble(showpriorbubbles and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel0[b + 1], "TL", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel1[b + 1], "L1", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel2[b + 1], "L2", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel3[b + 1], "L3", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel4[b + 1], "L4", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel5[b + 1], "L5", GlobalColor("L") );

AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo1[b]) and !IsNaN(preo1[b + 1]), preo1[b + 1], "O1", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo2[b]) and !IsNaN(preo2[b + 1]), preo2[b + 1], "O2", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo3[b]) and !IsNaN(preo3[b + 1]), preo3[b + 1], "O3", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo4[b]) and !IsNaN(preo4[b + 1]), preo4[b + 1], "O4", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo5[b]) and !IsNaN(preo5[b + 1]), preo5[b + 1], "O5", GlobalColor("O"));

AddChartBubble(showpriorbubbles and showrthopen_plot and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo0[b + 1], "TO", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo1[b + 1], "O1", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo2[b + 1], "O2", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo3[b + 1], "O3", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo4[b + 1], "O4", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo5[b + 1], "O5", GlobalColor("O") );


#
Click to expand...

Last edited:
SleepyZ said:
Thanks for the kind words. Glad it helps you.

This should now work how you requested. Replaced new code in posts #190 and #209
Click to expand...
Hey @SleepyZ

I'm using this version in my production chart. Wondering what's different with this version vs the version I'm using here https://usethinkscript.com/threads/previous-day-high-low-close-for-thinkorswim.3494/post-141068 (post 203) I'm guessing it's just coded in a way to use VP and to correctly adjust the levels as they occur?

Only wondering if possible to include the OVN POC in this version and the rth open as coded. It's brilliant where it prints a dotted RTH open, but doesn't trail.

Thanks!

Last edited:
hboogie said:
Hey @SleepyZ

I'm using this version in my production chart. Wondering what's different with this version vs the version I'm using here https://usethinkscript.com/threads/previous-day-high-low-close-for-thinkorswim.3494/post-141068 (post 203) I'm guessing it's just coded in a way to use VP and to correctly adjust the levels as they occur?

Only wondering if possible to include the OVN POC in this version and the rth open as coded. It's brilliant where it prints a dotted RTH open, but doesn't trail.

Thanks!
Click to expand...

This version of post #212 now includes Premarket POC each day with an option to extend it to the right edge.

The image includes the TOS VolumeProfile indicator to show a comparison of its' POC to the Premarket POC

Screenshot 2024-05-08 073759.png
Code:
#Premarket_HL_Futures_ExtendedHrs_using_thisday_RThrsOpen_PremarketPOC

input showrthopen_plot = yes;
input extend           = no;
input showpriorbubbles = yes;
input bubblemover      = 0;
def na = Double.NaN;

script pre {
    input daysback = 0;
    def na = Double.NaN;
    def bn = BarNumber();
    def ymd      = GetYYYYMMDD();
    def capture  = !IsNaN(close) and ymd != ymd[1];
    def dayCount = CompoundValue(1, if capture then dayCount[1] + 1 else dayCount[1], 0);
    plot thisDay = HighestAll(dayCount) - dayCount  ;

    def phigh    = if bn == 1 then na
                   else if thisDay[1] == daysback + 1 and thisDay == daysback
                   then high
                   else if thisDay == daysback and GetTime() < RegularTradingStart(GetYYYYMMDD())
                   then  Max(high, phigh[1])
                   else na;
    def plow     = if thisDay != thisDay[1] and thisDay == daysback
                   then low
                   else if thisDay == daysback and GetTime() < RegularTradingStart(GetYYYYMMDD())
                   then  Min(low, plow[1])
                   else na;
    def ropen    = if bn == 1 then na
                   else if thisDay == daysback
                           and SecondsFromTime(0930) == 0
                   then open
                   else if thisDay == daysback and GetTime() < RegularTradingEnd(GetYYYYMMDD())
                   then  ropen[1]
                   else na;

    plot po      = if thisDay > daysback  then na else HighestAll(ropen);
    plot ph      = if thisDay > daysback  then na else HighestAll(phigh);
    plot pl      = if thisDay > daysback  then na else LowestAll(plow);#

#Premarket POC
input start = 1800;
input end = 0929;

input extendlines = yes;

def sec1 = SecondsFromTime(start);
def sec2 = SecondsFromTime(end);
def isTime1 = (sec1 >= 0 and sec1[1] <= 0) or
(sec1 < sec1[1] and sec1 > 0);
def isTime2 = (sec2 > 0 and sec2[1] <= 0) or
(sec2 < sec2[1] and sec2 > 0) ;

def aftermarket = CompoundValue(1,
if isTime1[1] == 0 and isTime1 == 1
then 1
else if isTime2
then 0
else aftermarket[1], 0);

def bars = 100000;


def period = bn - 1;
def count  = CompoundValue(1,
if aftermarket and period != period[1]
then (count[1] + period - period[1]) % bars
else count[1], 0);
def cond = count < count[1] + period - period[1];

profile vol = VolumeProfile("startNewProfile" = cond, "onExpansion" = no, "numberOfProfiles" = bars, "pricePerRow" = PricePerRow.TICKSIZE , "value area percent" = 0);

#Premarket POC
def pPOC     = if aftermarket and IsNaN(vol.GetHighest())
               then pPOC[1]
               else if period != period[1]
               then vol.GetpointOfControl()
               else pPOC[1];
def exPOC   = if thisDay != thisDay[1] and thisDay == daysback
                   then if extendlines and !aftermarket then exPOC[1] else if aftermarket then pPOC else expoc[1] else na;
plot POC    = if thisDay > daysback  then na else highestall(exPOC);




}

plot preh0 = if !extend and pre(0) < 0 then na else pre(0).ph;
plot preh1 = if !extend and pre(1) < 1 then na else pre(1).ph;
plot preh2 = if !extend and pre(2) < 2 then na else pre(2).ph;
plot preh3 = if !extend and pre(3) < 3 then na else pre(3).ph;
plot preh4 = if !extend and pre(4) < 4 then na else pre(4).ph;
plot preh5 = if !extend and pre(5) < 5 then na else pre(5).ph;

plot prel0 = if !extend and pre(0) < 0 then na else pre(0).pl;
plot prel1 = if !extend and pre(1) < 1 then na else pre(1).pl;
plot prel2 = if !extend and pre(2) < 2 then na else pre(2).pl;
plot prel3 = if !extend and pre(3) < 3 then na else pre(3).pl;
plot prel4 = if !extend and pre(4) < 4 then na else pre(4).pl;
plot prel5 = if !extend and pre(5) < 5 then na else pre(5).pl;

plot preo0 = if showrthopen_plot then if !extend and pre(0) < 0 then na else pre(0).po else na;
plot preo1 = if showrthopen_plot then if !extend and pre(1) < 1 then na else pre(1).po else na;
plot preo2 = if showrthopen_plot then if !extend and pre(2) < 2 then na else pre(2).po else na;
plot preo3 = if showrthopen_plot then if !extend and pre(3) < 3 then na else pre(3).po else na;
plot preo4 = if showrthopen_plot then if !extend and pre(4) < 4 then na else pre(4).po else na;
plot preo5 = if showrthopen_plot then if !extend and pre(5) < 5 then na else pre(5).po else na;

plot prep0 = if !extend and pre(0) < 0 then na else pre(0).poc;
plot prep1 = if !extend and pre(1) < 1 then na else pre(1).poc;
plot prep2 = if !extend and pre(2) < 2 then na else pre(2).poc;
plot prep3 = if !extend and pre(3) < 3 then na else pre(3).poc;
plot prep4 = if !extend and pre(4) < 4 then na else pre(4).poc;
plot prep5 = if !extend and pre(5) < 5 then na else pre(6).poc;



#Colors
DefineGlobalColor("H", Color.ORANGE);
DefineGlobalColor("L", Color.ORANGE);
DefineGlobalColor("O", Color.WHITE);
defineGlobalColor("P", color.magenta);

preh0.AssignValueColor(GlobalColor("H"));
preh1.AssignValueColor(GlobalColor("H"));
preh2.AssignValueColor(GlobalColor("H"));
preh3.AssignValueColor(GlobalColor("H"));
preh4.AssignValueColor(GlobalColor("H"));
preh5.AssignValueColor(GlobalColor("H"));

prel0.AssignValueColor(GlobalColor("L"));
prel1.AssignValueColor(GlobalColor("L"));
prel2.AssignValueColor(GlobalColor("L"));
prel3.AssignValueColor(GlobalColor("L"));
prel4.AssignValueColor(GlobalColor("L"));
prel5.AssignValueColor(GlobalColor("L"));

preo0.AssignValueColor(GlobalColor("O"));
preo1.AssignValueColor(GlobalColor("O"));
preo2.AssignValueColor(GlobalColor("O"));
preo3.AssignValueColor(GlobalColor("O"));
preo4.AssignValueColor(GlobalColor("O"));
preo5.AssignValueColor(GlobalColor("O"));

prep0.AssignValueColor(GlobalColor("P"));
prep1.AssignValueColor(GlobalColor("P"));
prep2.AssignValueColor(GlobalColor("P"));
prep3.AssignValueColor(GlobalColor("P"));
prep4.AssignValueColor(GlobalColor("P"));
prep5.AssignValueColor(GlobalColor("P"));


#Bubbles

#High

def b = bubblemover;
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh1[b]) and !IsNaN(preh1[b + 1]), preh1[b + 1], "H1", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh2[b]) and !IsNaN(preh2[b + 1]), preh2[b + 1], "H2", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh3[b]) and !IsNaN(preh3[b + 1]), preh3[b + 1], "H3", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh4[b]) and !IsNaN(preh4[b + 1]), preh4[b + 1], "H4", GlobalColor("H"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(preh5[b]) and !IsNaN(preh5[b + 1]), preh5[b + 1], "H5", GlobalColor("H"));


AddChartBubble(showpriorbubbles and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh0[b + 1], "TH", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh1[b + 1], "H1", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh2[b + 1], "H2", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh3[b + 1], "H3", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh4[b + 1], "H4", GlobalColor("H") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preh5[b + 1], "H5", GlobalColor("H") );

#Low

AddChartBubble(showpriorbubbles and !extend and IsNaN(prel1[b]) and !IsNaN(prel1[b + 1]), prel1[b + 1], "L1", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel2[b]) and !IsNaN(prel2[b + 1]), prel2[b + 1], "L2", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel3[b]) and !IsNaN(prel3[b + 1]), prel3[b + 1], "L3", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel4[b]) and !IsNaN(prel4[b + 1]), prel4[b + 1], "L4", GlobalColor("L"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prel5[b]) and !IsNaN(prel5[b + 1]), prel5[b + 1], "L5", GlobalColor("L"));


AddChartBubble(showpriorbubbles and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel0[b + 1], "TL", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel1[b + 1], "L1", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel2[b + 1], "L2", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel3[b + 1], "L3", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel4[b + 1], "L4", GlobalColor("L") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prel5[b + 1], "L5", GlobalColor("L") );

#RTHrs Open
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo1[b]) and !IsNaN(preo1[b + 1]), preo1[b + 1], "O1", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo2[b]) and !IsNaN(preo2[b + 1]), preo2[b + 1], "O2", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo3[b]) and !IsNaN(preo3[b + 1]), preo3[b + 1], "O3", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo4[b]) and !IsNaN(preo4[b + 1]), preo4[b + 1], "O4", GlobalColor("O"));
AddChartBubble(showpriorbubbles and showrthopen_plot and !extend and IsNaN(preo5[b]) and !IsNaN(preo5[b + 1]), preo5[b + 1], "O5", GlobalColor("O"));

AddChartBubble(showpriorbubbles and showrthopen_plot and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo0[b + 1], "TO", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo1[b + 1], "O1", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo2[b + 1], "O2", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo3[b + 1], "O3", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo4[b + 1], "O4", GlobalColor("O") );
AddChartBubble(showpriorbubbles and showrthopen_plot and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), preo5[b + 1], "O5", GlobalColor("O") );

#POC

AddChartBubble(showpriorbubbles and !extend and IsNaN(prep1[b]) and !IsNaN(prep1[b + 1]), prep1[b + 1], "P1", GlobalColor("P"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prep2[b]) and !IsNaN(prep2[b + 1]), prep2[b + 1], "P2", GlobalColor("P"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prep3[b]) and !IsNaN(prep3[b + 1]), prep3[b + 1], "P3", GlobalColor("P"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prep4[b]) and !IsNaN(prep4[b + 1]), prep4[b + 1], "P4", GlobalColor("P"));
AddChartBubble(showpriorbubbles and !extend and IsNaN(prep5[b]) and !IsNaN(prep5[b + 1]), prep5[b + 1], "P5", GlobalColor("P"));


AddChartBubble(showpriorbubbles and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prep0[b + 1], "TP", GlobalColor("P") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prep1[b + 1], "P1", GlobalColor("P") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prep2[b + 1], "P2", GlobalColor("P") );
AddChartBubble(showpRiorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prep3[b + 1], "P3", GlobalColor("P") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prep4[b + 1], "P4", GlobalColor("P") );
AddChartBubble(showpriorbubbles and extend and IsNaN(close[b]) and !IsNaN(close[bubblemover + 1]), prep5[b + 1], "P5", GlobalColor("P") );

#
Click to expand...

You must log in or register to reply here.

Join useThinkScript to post your question to a community of 21,000+ developers and traders.

SIGN UP NOW LEARN MORE
Thread starter Similar threads Forum Replies Date
Wiinii Previous Day High/Low/Close + Premarket High/Low + High/Low/Open of Day + ATR Lines for ThinkorSwim Indicators 74
S Previous Days High, Low, Open, Close, and High/Low of defined timeframe For ThinkOrSwim Indicators 42
BenTen Previous Day High and Low Breakout Indicator for ThinkorSwim Indicators 128
BenTen Plot Previous Day Close in ThinkorSwim Indicators 29
N Hi Lo Broke Compared Previous Day For ThinkOrSwim Indicators 5

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
186 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
